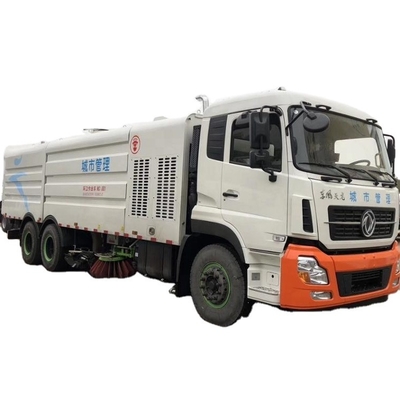

Dongfeng Tianlong 6X4 22m3 vacuum road sweeper machine repair shops large and truck washing price for sale

1 Unit
MOQ
$67,200.00(1 - 2 Units) $65,900.00(3 - 9 Units) $64,800.00(>=10 Units)
τιμή
Dongfeng Tianlong 6X4 22m3 vacuum road sweeper machine repair shops large and truck washing price for sale
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Municipal Sanitation
Showroom Location: United States, Italy, Pakistan, Mexico, Russia, Argentina, South Africa, Ukraine, Nigeria, Tajikistan, Japan
Condition: New
Dimension(L*W*H): 10600X2500X3350 mm
Weight: 25000kg
Warranty: 1 Year
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Canada, Turkey, United Kingdom, Germany, Brazil, Indonesia, Spain, Japan, Morocco, South Korea, Colombia, Romania, Nigeria, Uzbekistan, Tajikistan
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Πιστοποίηση: CE, CCC, ISO9001/9002
Product name: Dongfeng Tianlong 6X4 22m3 Road Sweeper and Washing Truck
Fuel: Diesel
Max speed: 90 km/h
Power: 245hp
Gear box: 6 speed gear
Cleaning speed: 3-25km/h
Cleaning effciency: 98%
Garbage tank volumn: 9CBM
Clean water tank volumn: 13 CBM
Sweeping width: 3.5 m
Βασικές πληροφορίες
Πιστοποίηση: CE, CCC, ISO9001/9002
Πληρωμής & Αποστολής Όροι
Packaging Details: waxed, water proof
Περιγραφή προϊόντων
Product Description

Dongfeng 6X4 22m3 Vacuum Road Washer and Sweeper Truck

Brief introduction of Dongfeng 6X4 22m3 Vacuum Road Washer and Sweeper Truck

The sweeping system is composed of vice engine, suction fan, clear water tank, garbage container, rear suction disc, left and right vertical sweepers, dust suppression and sweeping system, hydraulic system, electronic control system and auxiliary frame.

The washing system is composed of sprinker, spray, and flash nozzle, water tank, water pump, water cannon.

1. Euro 5 engine, 245hp, 6700ml

2. 170hp vice engine

3. 13m3 clear water tank:anti-corrosion and dust treatment

4. 9m3 garbage container: double inner tank made of stainless steel, with filter screen inside

5. Vertical sweeper: equipped with water spray device, the front sweepers have automatic avoiding function.

6. Max sweeping width:3.5m

7. Stainless steel water tank and garbage container

8. Self-cleaning function with garbage container

1. General Specification

Dimension

10600×2500×3350 mm

Gross weight

25000kg

Rated load weight

7145kg

Curb weight

17660kg

Max speed

90km/h

Crew seat

3

Wheelbase

5350+1350mm

2. Chassis Specification

Chassis brand

Dongfeng

Transmission

Manual

Fuel

Diesel

Tire number

10

Tire specification

11.00R20

Engine

ISD245 50

Engine power

180kw (245hp)

Displacement

6700ml

Emission standard

Euro 5

3. Sweeping Specification

Sweeping speed

3-25Km/h

Sweeping efficiency

≥98%

Maximum suction size

120mm

Max sweeping width

3.5m

Max sweeping capacity

80000m2/h

Max angle for discharging the garbage container

45°

Garbage container volume

9

Garbage container material

Stainless steel (thickness: 4mm)

Clear water tank volume

12

Hydraulic oil tank volume

60L

Vice engine power

170hp

Others

Garbage self-cleaning fuction

4.Washing specification

Water tank volume

13

Material

Stainless steel (thickness: 4mm)

Water pump flow

153L/m

High pressure hose reel20m
Water nozzle positionfront, rear, side and middle
Optional deviceWork platform, snow shovel
