Intelligent Environmental Building Material Stores Sweeper Vacuuming Vehicle

1.0 Units
MOQ
Intelligent Environmental Building Material Stores Sweeper Vacuuming Vehicle
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Building Material Shops, Construction works, Energy & Mining, Municipal Administration
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Engine, Motor, Pump
Condition: New
Dimension(L*W*H): 5970*2080*2435mm
Weight: 8200 kg
Warranty: 1 Year
Product name: Road Sweeping Truck
Engine rated power: 112KW
Emission: China VI
GVW (kg): 8200
Payload (kg): 2670
Garbage Tank Volume (cbm): 4.2
Water Tank Volume (cbm): 1.3
Maximum speed(km/h): 100
Sweeping Width (m): 3
Dimension (L*W*H) (mm): 5970*2080*2435
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard export package.
Supply Ability: 15000 Unit/Units per Year
Περιγραφή προϊόντων
Product Information

Product Display
Product Overview

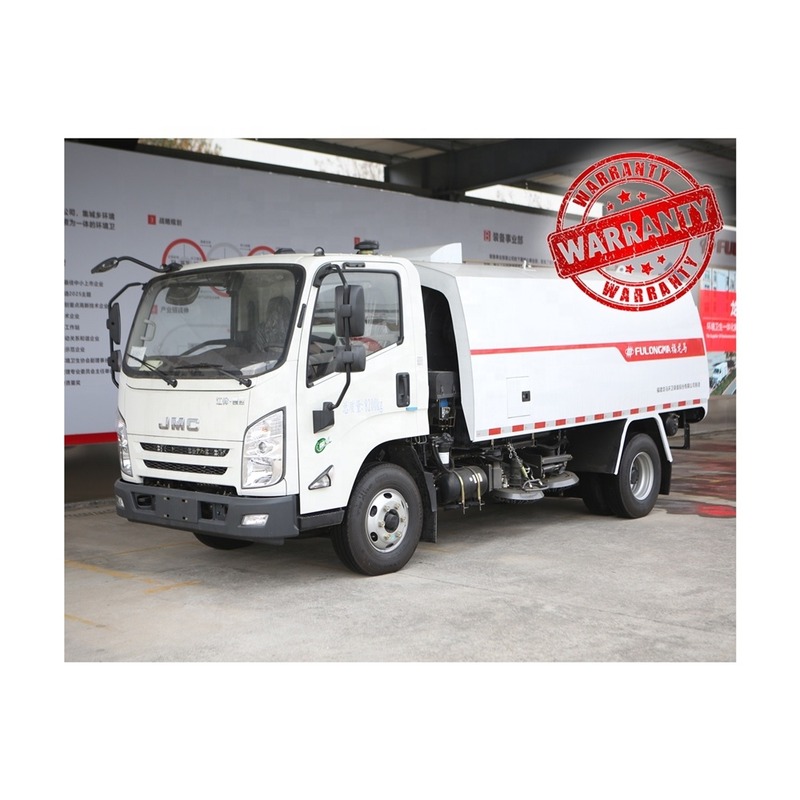

Road Sweeper
The truck is a small road sweeper,whose emissions meet the Euro standard. It has the advantages of compactness, lightness and flexibility, strong sweeping and suction capability, low operating noise, and comfortable operation and driving. It is especially suitable for cleaning and sweeping operations in residential areas, squares, auxiliary roads, and sidewalks. It can effectively expand the area of existing road cleaning and sweeping, and improve efficiency.

1. Type of cleaning device: center four-pan sweep + rear suction nozzle, the sweeping pan can automatically avoid obstacles.2. Suction nozzle: adopts a roller sweep enhanced suction nozzle with built-in roller sweep to prevent the garbage from omission; three-point floating support for rolling rubber wheels and strong road surface profiling function, which can adapt to the cleaning requirements of different road surfaces, which is a domestic initiative; Optional new leaf sweeping nozzle with national patent technology protection.3. Equipped with a pneumatic net pipe antifreeze device, which can effectively ensure that the water spray parts will not be structurally damaged due to icing;4. With a drainage and leakage prevention device, it can effectively prevent the accumulation of dirt and prevent the secondary pollution caused by the dirt falling back to the ground and blocking the garbage suction pipe.
PRODUCT SPECIFICATIONS
No.
Item
Data
1
Chassis Model
5080TSLJL6
2
Emission Standard
China VI
3
Engine Model
JX4D306H
4
Total Mass (kg)
8200
5
Payload (kg)
2605/2670
6
External Dimension (mm)
5970×2080×2435
7
Maximum speed (km/h)
100
8
Sweeping Speed (km/h)
3~20
9
Sweeping Ability (m2/h)
60000
10
Stainless Steel Garbage Tank Volume (m3)
4.2
11
Stainless Steet Water Tank Volume (m3)
1.3
12
Air Conditioning
Warm/Cold
Sweeping Brooms
There are a total of four sweep disks, which are symmetrically distributed on the left and right sides of the vehicle, with a span
of 3m. It has been set to a full-sweep operation state and can be optionally equipped with a separate control function. There is also a fan-shaped nozzle above the sweeping brush with an angle of 110 degrees, which can be sprayed to reduce dust during
sweeping operations.
Central Suction Nozzle
The suction nozzle has a diameter of 200mm and adopts three-point floating support with a rolling rubber wheel, which can adapt to the requirements of different road surfaces. At the same time, it is equipped with a roller lifting adjustment device, which
can quickly adjust the position of the roller.

Optional - Suction Nozzle with a Built-in Roll Sweeper

It can be used to clean thick dust on the road surface. The rear end of the suction nozzle is equipped with a rolling sweeping broom, which can sweep the omission garbage or dust into the suction nozzle again.

Optional - Suction Nozzle for Leaves

The front baffle of the suction nozzle can increase the opening degree through an electric push rod to increase the inlet area of the suction nozzle, so that light and floating objects such as leaves can enter and pick up.
Backup Camera
Cameras are installed on the rear and right side of the vehicle, and color displays are installed in the cab. During operation, you can check and monitor the cleaning effect in the cab. It can also be turned on when reversing to prevent rear-end collision.
In-cab Control
The operating device is located on the control panel of the cab, and when you need to work, select the corresponding switch to perform the work mode.
.
